SSI-Series Seismic Vibration Isolators
Patented spring isolators with integrated earthquake restraint — engineered for excellent vibration isolation efficiency, in-field leveling adjustability, and full AC-156 seismic qualification.
Tested innovative design
The SSI-Series combines a high-deflection spring with an integrated earthquake restraint housing — a single component that isolates vibration and protects equipment during a seismic event.
Independently qualified per ICC-ES AC-156 acceptance criteria — supports IBC/CBC and HCAI/OSHPD certification submittals.
High-deflection spring design delivers superior isolation efficiency for rotating and reciprocating equipment.
Built-in leveling studs accommodate uneven mounting surfaces and simplify field installation.
Patented design by Panache Engineering Inc. Manufactured in the USA by Sigma Source LLC.

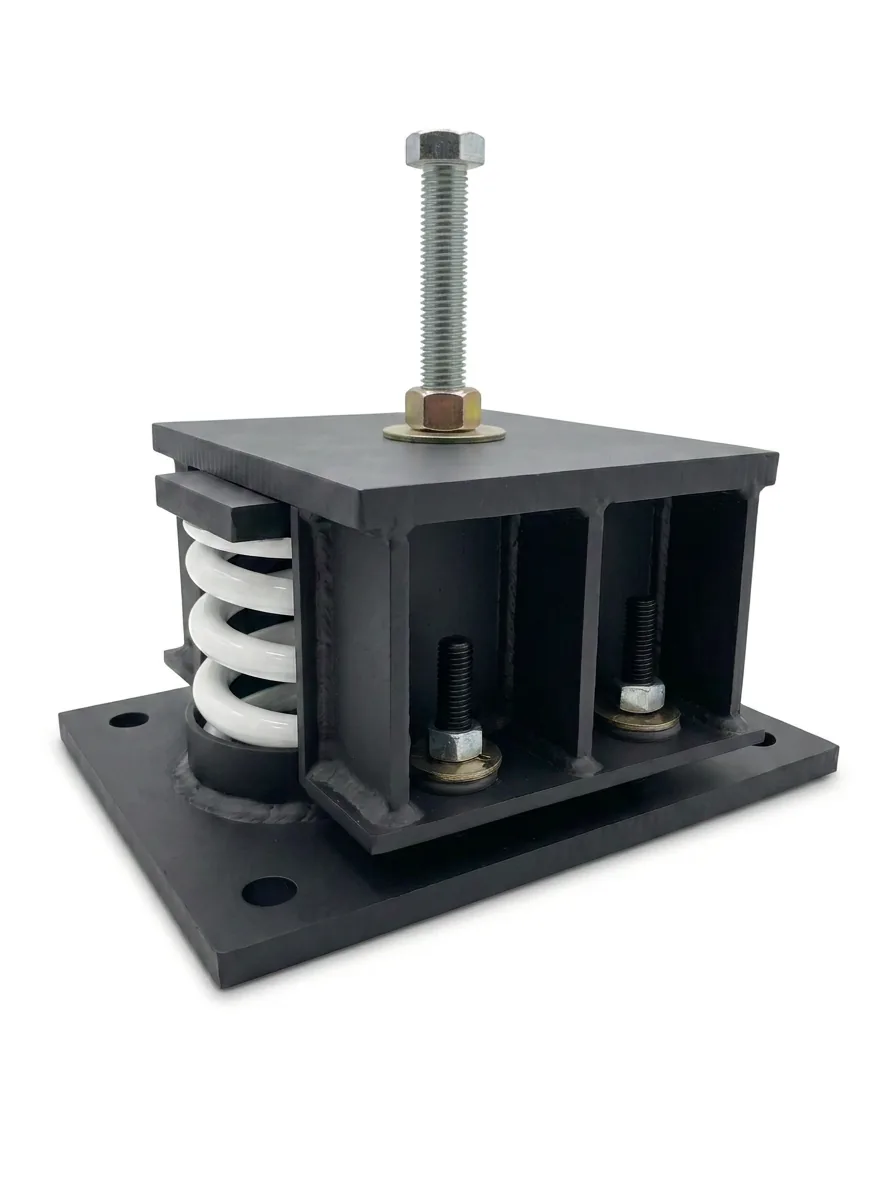

Engineered components

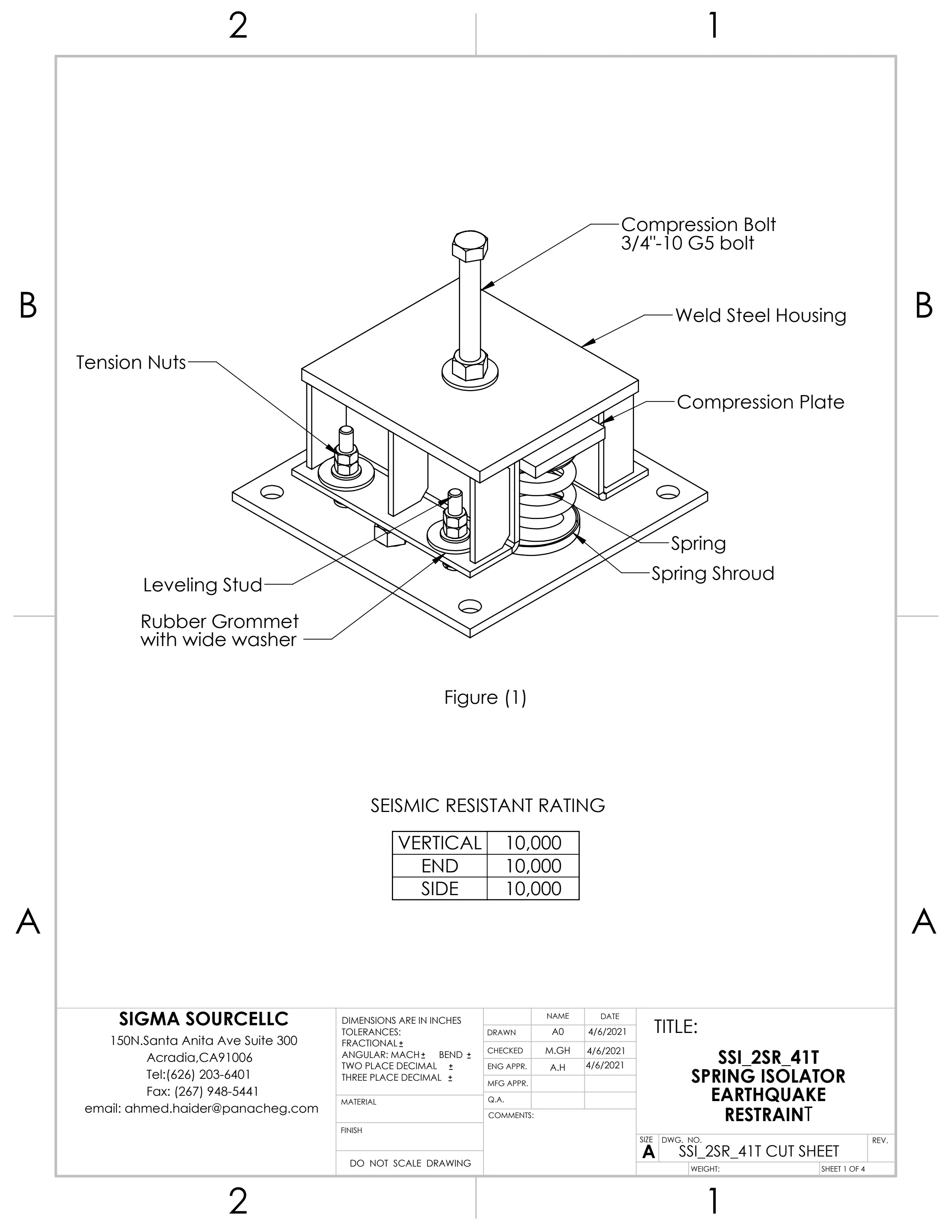

Each isolator is built around a robust welded steel housing and a color-coded spring matched to the equipment load. Tension nuts and rubber grommets resist uplift and damp transient impact during a seismic event.
- Compression Bolt (3/4"-10 G5)
- Welded Steel Housing
- Tension Nuts
- Compression Plate
- High-deflection Spring
- Leveling Stud
- Spring Shroud
- Rubber Grommet with Wide Washer
Seismic resistant rating
- Vertical
- 10,000 lb
- End (longitudinal)
- 10,000 lb
- Side (transverse)
- 10,000 lb
SSI-2SR-41T model ratings
1-inch deflection, 2-spring isolators. Twenty color-coded models cover loads from 200 lb to 6,200 lb per isolator.
| Catalog No. | Spring Rate (lb/in) | Min Load (lb) | Rated Defl. (in) | Max Load (lb) | Max Defl. (in) | Spring Color |
|---|---|---|---|---|---|---|
| SSI_2SR_1_100_200 | 100 | 200 | 1 | 300 | 1.5 | Red |
| SSI_2SR_1_600_900 | 300 | 600 | 1 | 900 | 1.5 | Pink |
| SSI_2SR_1_800_1200 | 400 | 800 | 1 | 1,200 | 1.5 | Red + Pink |
| SSI_2SR_1_1000_1500 | 500 | 1,000 | 1 | 1,500 | 1.5 | Light Green |
| SSI_2SR_1_1200_1800 | 600 | 1,200 | 1 | 1,800 | 1.5 | Light Blue |
| SSI_2SR_1_1400_2100 | 700 | 1,400 | 1 | 2,100 | 1.5 | Light Blue + Red |
| SSI_2SR_1_1600_2400 | 800 | 1,600 | 1 | 2,400 | 1.5 | Orange |
| SSI_2SR_1_2000_3000 | 1000 | 2,000 | 1 | 3,000 | 1.5 | Purple |
| SSI_2SR_1_2200_3300 | 1100 | 2,200 | 1 | 3,300 | 1.5 | Pink + Orange |
| SSI_2SR_1_2600_3380 | 1300 | 2,600 | 1 | 3,380 | 1.3 | Yellow |
| SSI_2SR_1_2800_4200 | 1400 | 2,800 | 1 | 4,200 | 1.5 | Dark Blue |
| SSI_2SR_1_3000_4500 | 1500 | 3,000 | 1 | 4,500 | 1.5 | Purple + Light Green |
| SSI_2SR_1_3200_4160 | 1600 | 3,200 | 1 | 4,160 | 1.3 | Yellow + Pink |
| SSI_2SR_1_3600_4680 | 1800 | 3,600 | 1 | 4,680 | 1.3 | Black |
| SSI_2SR_1_3800_5700 | 1900 | 3,800 | 1 | 5,700 | 1.5 | Dark Blue + Light Green |
| SSI_2SR_1_4200_5460 | 2100 | 4,200 | 1 | 5,460 | 1.3 | Yellow + Orange |
| SSI_2SR_1_4400_6600 | 2200 | 4,400 | 1 | 6,600 | 1.5 | Dark Blue + Orange |
| SSI_2SR_1_4600_5980 | 2300 | 4,600 | 1 | 5,980 | 1.3 | Black + Light Green |
| SSI_2SR_1_5200_6760 | 2600 | 5,200 | 1 | 6,760 | 1.3 | Black + Orange |
| SSI_2SR_1_6200_8060 | 3100 | 6,200 | 1 | 8,060 | 1.3 | Black + Yellow |
Need a different deflection or higher capacity? Contact us — additional SSI-Series models and custom configurations are available.

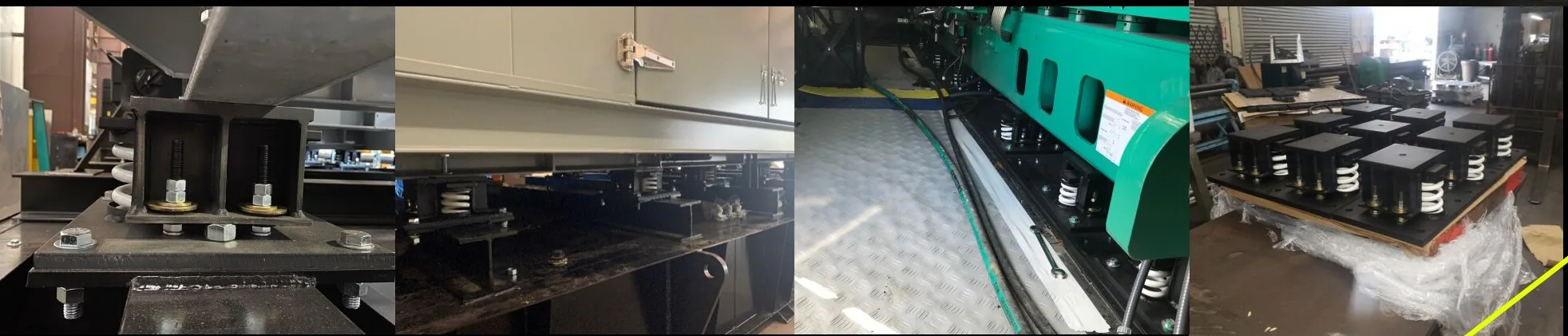

Applications
Designed for active mechanical and electrical equipment requiring vibration isolation and seismic restraint.
- Power Generators
- Transformers
- Chillers
- Compressors
- Pumps
- Transmission Equipment
- Cooling Towers
- HVAC Units
- Blowers
Engineering services
Full single-source support — from isolator selection through PE/SE stamped submittals.
- Isolator Selection
- PE Stamp Calculations
- Seismic Shake Testing
- IBC/CBC Certification
- HCAI/OSHPD Submittal
- Vibration Analysis
- Structural Design
- Support Design
- Anchor Calculations
Patented design, US-manufactured
The SSI-Series is patented by Panache Engineering Inc and manufactured in the United States by Sigma Source LLC at our Arcadia, California facility. Every isolator ships with documentation supporting AC-156, IBC/CBC, and HCAI/OSHPD project submittals.
